Instrumentation: FIRST PERIOD

A randomized 100 question test from a pool of 1236 questions, good luck!

Capacitance is a measurable quantity. Which of the answers below represents the SI unit for capacitance?
What is the area of the cylinder that has a mass of 4 kg placed on it creating 98321 Pa of pressure?
To move 175 C across two points. when the voltage is 30 V, how much energy is required?
In the SI system of measurements, there are several symbols used for magnetism. Which of the measurement units below would represent "relative permeability"?
With the proper formula, "Work" is a measurable quantity. Which answer below represents the "force that is applied" part of that equation?
Of the list below, what is the standard unit of quantity of electricity in the International System of Units (SI)?
There are two very common types of metric vernier calipers. If the caliper that you are using has 1mm graduations on the beam, which of the answers below represents the graduations required on the Vernier scale?
In the figure below, R1= 10 ohms, R2=6 ohms, and R3=4 ohms, with the battery producing 40 V, what is Amperes of the circuit?
If a closed tank is pressurized to 20 psig and the pressure gauge at the bottom of the tank reads 25 psig, what head (in meters) of a liquid with a R.D. of 0.65 is contained in the tank
(310105d) Scalar quantities are all a measurable amounts. Which of the answers below would "Work" use as it's unit of measurement?
A mass of 6 kg is placed on top of a spring and that spring compresses 7 cm. What is it's spring rate?
(310102g) Energy can transition between various forms. Which of the terms below can be best described as the percentage of total energy input to a machine or equipment that is consumed in useful work and not wasted as useless heat?
Of the answers below, which one is a disadvantage of a Pinch valve?
A mass of 7 kg is placed on top of a spring and that spring compresses 8 cm. What is it's spring rate?
Which type of valve is pictured below?
(310101c) There are a wide variety of tubing fitting types. Which of the fittings below would best be used when terminating tube connections?
State the number 789342.61 using decimal notation and round the answers to three significant digits.
If a battery has a rating of 120 Ah, theoretically it could provide 12 A for how long?
Circular chart recorders have several specific accessories. Which of the accessories below would use an ambient compensation capillary?
(310101c) Copper tube is the most used type of tubing in industry. What type of colour code would a Type ACR tube type typically have?
State the number 0.05634 x 10⁻¹³ using scientific notation and round the answers to three significant digits.
In industry, there are several types of protection used to reduce the risk of explosion. Which of the methods of protection below is best defined as "A electrical and thermal energy limiting method brings both normal operation and fault conditions to safe levels."?
In industry, there are several types of protection used to reduce the risk of explosion. Which of the methods of protection below would explosion-proof equipment be primary used?

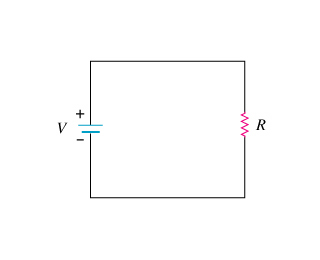

In a simple circuit, if I= 2 A and R=3 ohms, what is the voltage drop over the resistor of the circuit?
In the figure below, R1= 10 ohms, R2=6 ohms, and R3=4 ohms, with the battery producing 40 V, what is the power absorbed by R1?

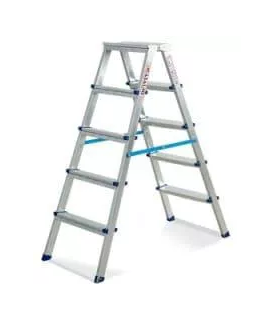

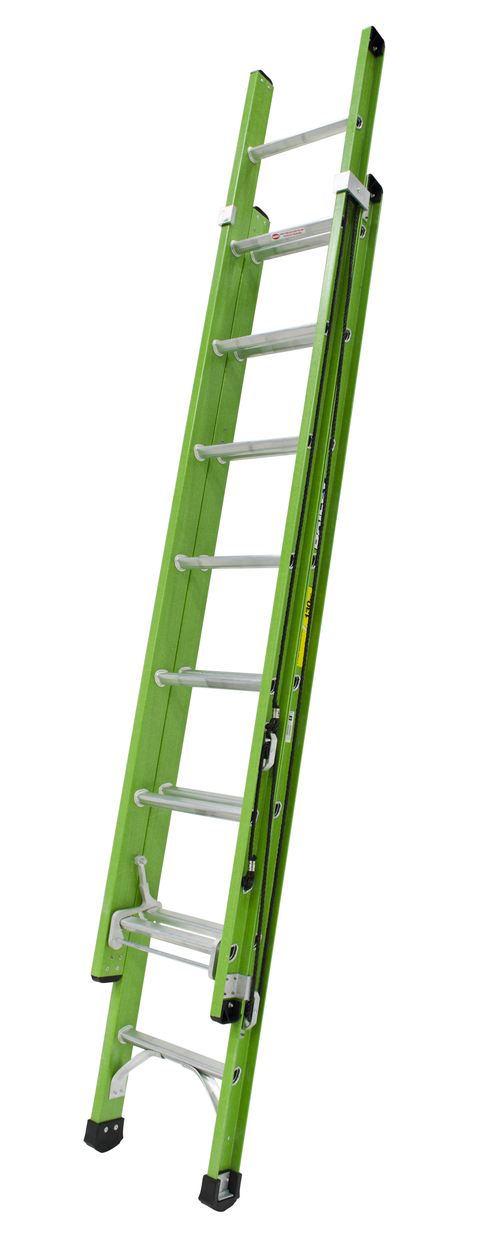

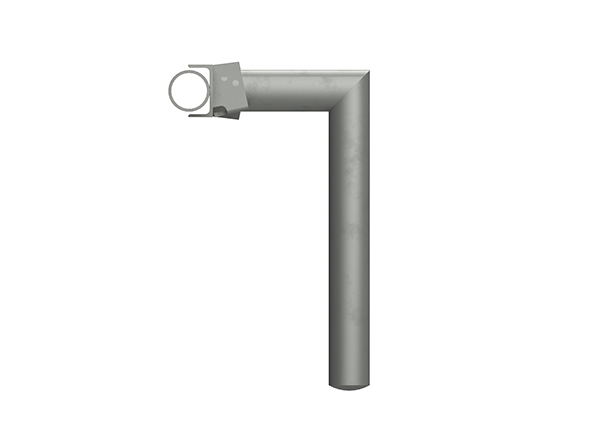

Ladders have specific designs for specific applications. Which of the answers below correctly identifies the ladder in the following picture?
There are numerous designs of batteries. Which of the batteries below would be generally considered to be the most maintenance free?
A battery has a rating of 80Ah, this means it can supply
Even though explosion safety equipment must be able to deal with extreme pressures, maintenance must also be allowed to occur. Which of the enclosures below would allow for both maintenance and protection from explosion?
In the WHMIS system, "Flammable and combustible material" is represented by which hazard class? Choose from the following answers.
When a pressure of 15 psi is applied to a diaphragm actuator with a diameter of 18 cm, what is the force in Newtons (N) that is created?
A volume booster is not a positioner.
(310105i) Any solid has inherent properties associated with it. Which of the properties below would be measured as a result of a tensile test on it??
When selecting a hammer to use, what would "weight of head" help determine?
For every gas law there is a corresponding equation. Which of the gas laws below is missing from the Combined Gas Law?
There are several different types of carbon steel in any piping system. Which of the types below would have more than a 0.6%% carbon content?
There are several different ways to apply force to an actuator. Which one of the methods below would use a piston for operation?
(310105i) Any solid has inherent properties associated with it. Which of the terms below would best represent the final amount of stretch or elongation that the material undergoes during tensile testing?

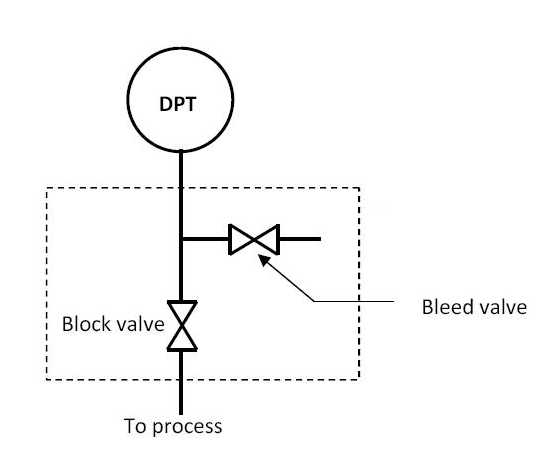

Isolating process lines with a physical barrier is one of the steps for safe field servicing of a control valve. Which of the blank types below would best be described a physical barrier between two flanges of sufficient diameter to fill the entire diameter of the pipe to prevent the passing of material beyond that point?
"The quantity of motion of a moving body, measured as a product of its mass and velocity," is the description of which mathematical term?

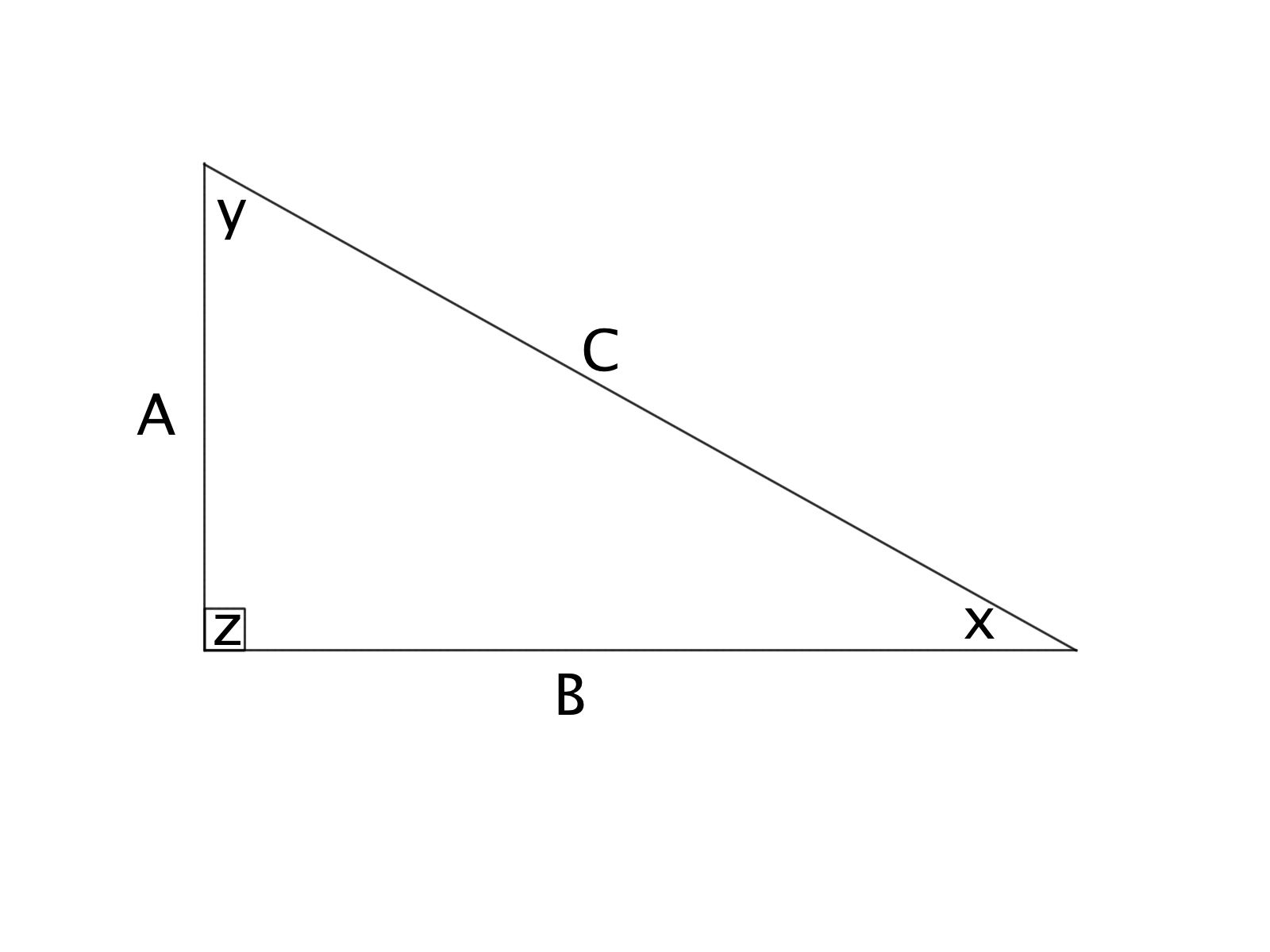

The perimeter of a rectangle is calculated with which correct equation?
An I/P transducer is a positioner.
In a simple circuit, if E=4 V and R=1.75 ohms, what is the current of the circuit?

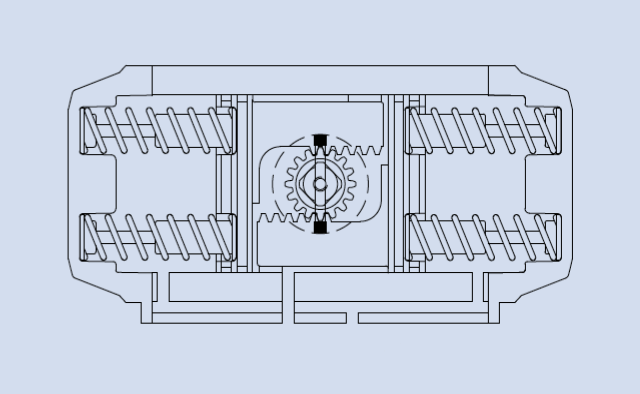

There are numerous types and styles of valves in industry. Which of the actuators below best represents the following picture?
What volume does a substance that has a density of 1369 kg/m³ and has a mass of 4.50 kg?
What is the pressure generated by a mass of 4 kg placed on a the top of a cylindrical piston with a 3 cm diameter filled with gas?
Chart recorders have a couple of specific applications. Which application below would best describe the charting of results from a flow rate close to an orifice plate?
What is the name of the tool that is used on round stock to cut external threads?
"The distance traveled divided by the time elapsed to reach final position." is the description of which mathematical term?
To perform a "Zero" adjustment the order of step(s) is/are?
What type of flux is generally used the most in electronic soldering?
There are some troubleshooting issues that can arise while soldering. Which of the issues below would be best described as a heat transfer loss from the soldering tip?
Labels are an important piece of the WHIMS structure. Which of the labels below would be used when damage occurs to the original supplier label?
"This physical factor within the environment that harms the musculoskeletal system." This statement best describes which of the hazard groups below?

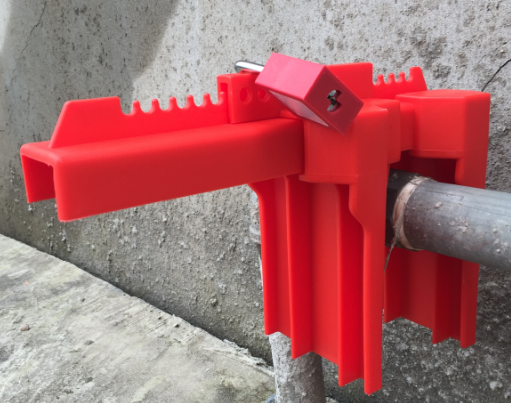

When servicing or troubleshooting a valve there are several steps that must be completed. In controlling hazardous energy, verifying energy sources in work area are without power, would be which of the steps below?
"5 x 7=7 x 5" is an example of which mathematical law?
What is the pressure generated by a mass of 3 kg placed on a the top of a cylindrical piston with a 6 cm diameter filled with gas?
A parallel circuit reacts in specific ways to the addition of a resistive load. Which of the answers below best describes the reaction to an decrease in resistive load?
There are many different parts to a parallel circuit. Which of the answers below corresponds correctly with the number "2" in the picture below?
(310102m) The charging and discharging of a capacitor is a mathematical relationship. In the equation, τ=R x C, which of the answers below would best refer to the "C"?
(310104d) There are several features available on valve positioners in industry today. Which of the features below can be best described as one that uses negative feedback in it's operation?
(310103f) There are several methods for measuring process variables. Which of the transmitters below would use a fixed restrictor as well as a feedback bellows in the creation of an output pressure signal?
Within the umbrella of intrinsically safe loops, there are several sub-categories and classifications. Which of the terms below would best be describe a barrier that conditions signals received or transmitted to a hazardous area
In a simple circuit, if I= 3 A and R=5 ohms, what is the voltage drop over the resistor of the circuit?
There are many terms associated with "Energy". Which term below is correctly described as, "done on an object when an applied energy moves it through a distance"?
Due to a lengthy transmission distance a control valve is responding slowly. The device that would improve the response speed of the valve would be?

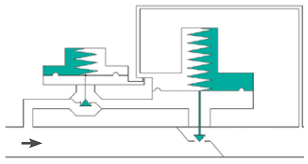

If there was a need to provide a regulated output pressure with no distrubances from varying inlet and downstream pressures, which of the devices below would be used?
The CEC generates a hazardous area result by investigating the contents of the area. Which of the designations below is based on an explosive atmospheres duration and frequency of occurrence?
A mass of 5 kg is placed on top of a spring and that spring compresses 5 cm. What is it's spring rate?
In industry, electrostatic hazards are very important to understand. Which of the terms below can correctly be described as a charge created when two objects that are not good electrical conductors are rubbed together, and electrons from one of the objects rub off onto the other?
1 psi is equal to _____ kPa
A piece of metal with a length 13 1/4" is cut into 2 pieces. If one piece is 5 3/4' long, determine the length of the other piece.
(310102c) Resistors are commonly rated in 3 distinct ways. Which of the answers below would best relate a "ppwer" rating?
There are 5 separate classifications in the WHIMIS system. Which of those classifications is correctly represented by the following symbol?
Two pieces of eye protection should be used together when grinding or chipping. Choose the best answer from the selection below.
The MSDS for each controlled product must be:
In any intrinsically safe loop there are several main items that are vital to the loop. Which of the answers below contains those items?

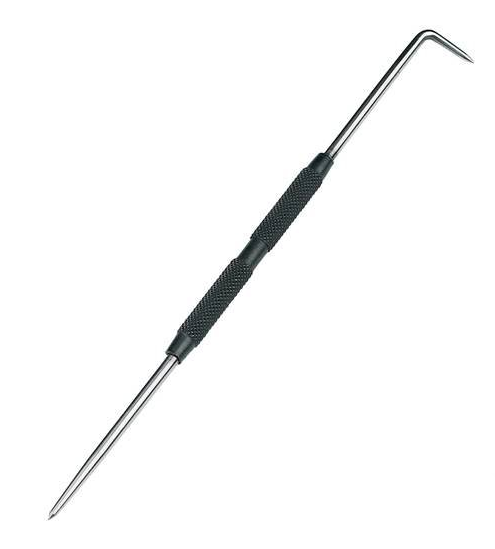

There are numerous steps to drilling with a power drill. Which answer below correctly identifies the size of the center punch mark in a piece to be drilled?
(650101a) There are three main sections in the occupational health and safety legislation in Alberta. Which of the sections below best relates to the thorough, precise safety details for workers?
A 15 kg wagon is moving west with a speed of 3 m/s. Determine it's momentum.
"_________ is an injury caused by freezing of the skin and underlying tissues. First your skin becomes very cold and red, then numb, hard and pale." Use the answers provided to fill in the blank.
There are electrical properties that are inherent to coils. Which of the answers below correctly identifies the properties that a coil possesses?
(310102m) There are numerous electrical terms relating to specific components. Which of the terms below can be best described as the the process of accumulating energy in a capacitor?
There are several equations related to magnetism. Which of the terms below is represented by the equation "Ꙡᵣ=μₘ/μₒ"?
In Unified National nomenclature what does the "12" represent in this bolt class- 1/2-12-UNC 2B

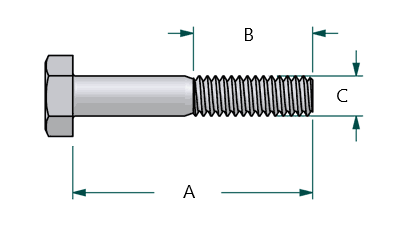

There are several terms that are used to describe the features of a particular thread type. Which of the terms below would best describe a thread with a 16 TPI?
There are several grades of iron and steel. Which of the answers below best represents a material that is extremely brittle because of it's high carbon content?
A pneumatic level transmitter, with an output range of 20-100 kPa, is being used to assess the fluid level in a cylinder though an input range of 0-12 meters. What is the transmitter output signal if the fluid level is at 8.65 meters?
Determine the voltage V(ad) with R1=70k ohms, R2= 136k ohms and R3= 360K ohms, with a current of 0.754 mA
If a closed tank is pressurized to 26 psig and the pressure gauge at the bottom of the tank reads 53 psig, what head (in meters) of a liquid with a R.D. of 0.15 is contained in the tank
For every gas law there is a corresponding equation. Which of the gas laws below is represented by the equation "V₁T₂=V₂T₁"?
A fire is burning in a pile of weathered, oily blankets. Which of the following extinguishers should you use to fight this fire?
(310104d) Valve positioners provide several advantages over standard valves. Which of the advantages below would best relate to the addition or release of air from the actuator to achieve proper plug placement?
A parallel circuit reacts in specific ways to the to an open circuit. Which of the answers below best describes the reaction of the total line resistance to an open circuit?
(310103f) There are several components used in measuring and controlling a process variable. Which one of the components below would be responsible for converting a measured PV into an output signal?
If a pressure change of 20 kPa to 60 kPa is to fully stroke a valve, what strength of spring must be used. The control valve has a stem travel of 7.5 cm and the effective area of the diaphragm is 0.09 m^2
What does the term "Cv" represent in calculating pressure drop?
Piping material that is non-ferrous is most common in lower temperature services. Which of the answers below would best be classified as a "non-ferrous" material?
(310101c) There are several different styles of flared and flareless fittings. Which of the styles below would commonly use a O-ring seal style fitting?
Determine the voltage V(ab) with R1=70k ohms, R2= 100k ohms and R3= 360K ohms, with a current of 0.754 mA
