Process controls: FOURTH PERIOD

A randomized 25 question test from a pool of 469 questions, good luck!

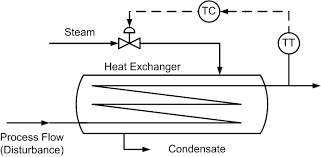

Which of the variables below is best defined as a manipulated variable for a standard steam exchanger.
If an unusual condition appears, compressor control systems have instruments that will shut down the compressor safely. Which of the shutdown classes below is best described as having no time limits, and armed when the process is in operating limits, and
In a reciprocating compressor, the piston rod is put under extreme forces and requires monitoring. Which of the situations below would use mounted strain gauges?
Gasoline is a complex hydrocarbon blend. Which of the blending ratios would use a pace controller to set the RSP for all of the lines being blended?
There are many different parts and processes to a distillation column. Which of the design feature below can be best described as the process of condensed tops reintroduced to the column?
SAMA has various symbols for the elements or functions of a boiler. Which of the answers below correctly identifies "A"?
There are numerous undertakings in developing an SIS, this is called the safety life cycle. Which of the terms below relates best to an action or event that leads to coincidental failures of two or more individual channels in a complicated channel system?
Surge is the worst conditions that a centrifugal compressor can have, so some control strategies have been developed to mitigate this. Which of the strategies below can be described as a control that functions despite the surge controller not operating?
Even a peak operating boiler must be protected from various issues that effect it's performance. Which of the terms below would be best be prevented by having sodium carbonates substituted with sodium sulfates as a softening agent?
Feedforward control strategies are developed from different sources. Which of the strategies below is derived equations that involve energy or mass balance equations?
There are several ways to control the pressure in a distillation column. Which of the answers below is would be the best type of pressure control for a typical distillation column?
There are several ways to control the pressure in a distillation column. Which of the answers below is best described as the control of the condensers coolant flow?
The static gains of the _______ variable and ________ variable for each loop are contained in the OLM. Choose the best answer to fill in the two blanks from the ones below.
There are numerous undertakings in developing an SIS, this is called the safety life cycle. Which of the terms below relates best to the qualitative measuring the possibility or seriousness of a hazard?
Which of the answers below is best described as the quantitative measurement of best controlled and manipulated variable pairings to limit loop interaction?
Which of the answers below is best described as a device that has consistent static gain over it's operational range?
Surge is the worst conditions that a centrifugal compressor can have, so some control strategies have been developed to mitigate this. Which of the strategies below can be described as the measurement of differential pressures in the compressor, head and inlet flow pressure determines if action is required?
In the distillation process there are two defined variables. Which of the variables below can be best described as the quality of the content that is exiting the column?
There a some conventional distillation column control strategies. Which of the strategies below is an example of an material balance strategy?
Which of the answers below best represents the controller gain if the PB is 65%?
Direct and indirect ratio control have an inherent problem that requires the addition of feedback trim. Which of the answers below best describes that issue?
Calculate the RGM of a process with the following static gains: K₁₁=1.33, K₁₂=-1.25, K₂₁=0.8, K₂₂=0.58.Ꙡ₂₂Ꙡ₁₁Ꙡ₁₂Ꙡ₂₁
The techniques employed in process systems, that have the controlled value as close to the desired value are called control strategies. Which of the strategies below is designed to counter disturbances before they can affect the controlled variable?
On a typical boiler control system, there are four main points of control. Which of the answers below would best be manipulated to control the supplied steam pressure?
There are multiple parts to a large industrial water tube boiler. Which of the answers below is best described as the area where boiler water is equalized, and scale is deposited?
