Steamfitter-Pipefitter: FIRST PERIOD

A randomized 100 question test from a pool of 991 questions, good luck!

(se)Welding power sources that are AC-DC rectifier type have several advantages to them, which of the answers below is not one of them? Select the best answer from the options provided.
Every hacksaw blade has a "set". This particular "set" has every tooth bent slightly to the side and in the opposite direction of the one in front of it. Of the answers below, choose the best "set" to match this description.
(v) There are many variations of the basic types of valves. Which of the basic valve types below would have "Gas valve" variation?
There a specific vocabulary when describing the areas of a fillet weld. Which of these terms is represented by "G" in the picture below? Choose the best answer from those provided.
There are a variety of drafting tools that are used in the creation of fabrication patterns and layouts. Of the tools given, which one best describes the item in the picture below?
When buying a ______ solder, the ______ content is always listed first. Fill in the blanks from the options below.
A holding tank is 43 feet in diameter. How many feet of welding will it take to seal the lid on the top? Choose the best answers from those provided below.
Upstream of the low pressure stage and downstream of the high pressure stage of the two stage compressor, should be the location for which of the following components of a basic pneumatic system?
(ws) Welding and Oxy-fuel cutting have some specialized safety equipment. Which of the answers below would be the minimum recommended filter plate for medium amperage PAC welding?
In the International System of Units, there are several standard measurements. Of the the standard measurements below, which one best represents the unit for energy?
(ofc)Which oxy-fuel cutting tip is pictured below. Choose the best answer from those given below.
The recommended PVC grooved joint operating maximum temperature is which of the below?
Which of the numbered symbols below best represents a side view butt weld tee?
(ofc)There are many different parts to an oxy fuel cutting torch. Choose the best answer from the options below that would describe "A".
(wf)There is a great variety of ______ . This encompasses any flaw that compromises the acceptable standard for a weld. Choose the best answer to fill in the blanks from the ones provided below.
Which of the numbered symbols below best represents a side view butt weld cap?
Fabricators and designers have been using the various lines to convey information in their drawings, which is called the "alphabet of lines". Which of the terms below best describes the line labeled "E" in the picture provided?
(bs)Of the alloys below, which is the alloy of copper and zinc?
"A measure of a material's ability to undergo significant plastic deformation before rupture." This statement is the best description of which of the following terms?
The volume of all solids and liquids changes as the temperature of the substance rises and falls. Choose the best answer that represents the change in volume when water transforms to ice.
Before entering a container to work, your Journeyman asks for a gas test to be done. The foreman agrees and puts the sniffer close to the floor of the container. Of the following answers, which gas would he be testing for?
"The standard filler is normally sufficient for applications up to 900º F. Other soft fillers are available for higher temperatures or special applications. The choice of the metal used for the jacketed part of the fitting would depend upon the corrosive conditions being encountered." This is the best description of which of the following fittings?
The air has a density of _________ at STP, based on 101 kPa and 0°C. Use the best answer below to fill in the blank.
(se)"This term is describing a welding machine that has a steep volt-amp curve. It is well suited for SMAW and GTAW welding." This statement best describes which of the following answers?
(papg) Areas and surface areas can be measured in metric. Which of the answers below would represent the proper time to convert mm into m in a calculation?
When using a beam clamp, ensuring the recommended support load is not exceeded is important. What other component of this support system needs to checked against the weight of the load?
(ws) There are several different types of energy that are released when you are welding or oxy-fuel cutting. Which of the rays below would best be described as one that would cause skin to burn due to an elevated temperature of the exposed area?
The alignment of holes in two or more pieces of plate at the same time can be a challenge. Which of the tool below would be best in this situation?
(ofc)Which of the following gases has the highest MJ/m³ rating? Choose the best answer from those provided.
Typical hanger spacing for 19 mm copper pipe is 2.4 m. Using that information, how many hangers are needed on a 8 m horizontal run?
Piping that you have to be order for a job needs to be absolutely devoid of any surface contamination. Which of the following finishes will you ask to have put on your piping?
"_________ is an injury caused by freezing of the skin and underlying tissues. First your skin becomes very cold and red, then numb, hard and pale." Use the answers provided to fill in the blank.
While fitting a joint you are made aware that there is no wall thickness stamped on the fitting you are going to use. The proper course of action would be?
When you are going to lubricate an air motor, which of the following would be the best time to do it?
Which of the behaviors below best describes a rise or fall of the liquid surface, if a thin tube that is open at the both ends is inserted vertically in to a liquid, relative to the adjacent level of the fluid.
Fabricators and designers have been using the various lines to convey information in their drawings, which is called the "alphabet of lines". Which of the terms below best describes the line labeled "G" in the picture provided?
When referring to the center to end measurement of a 90 degree elbow threaded fitting, what is the best term that describes this measurement?
The categories of workplace hazards have been broken down to _____ main areas. Using the answers below fill in the blank.
Calculate the perimeter of a building that has a wall measurement of 12' 6⅜". Choose the best answer from the ones below.
Position designations for groove and fillet test welds include numbers and letters. The number dictates a particular position, while the letter dictates a particular position. Choose the best combination of letters and numbers below to identify the weld position and type shown in the picture below.
Calculate the mass of 2.75 m³ of stainless steel that weighs 3790 kg/m³. Choose the best answer from the ones provided below.
In the picture below there are various dimensions noted. Choose the answer from the ones provided that best describes the method of dimensioning.
Fabricators and designers have been using the various lines to convey information in their drawings, which is called the "alphabet of lines". Which of the terms below best describes the line labeled "A" in the picture provided?
(mse)There are a number of components to a simple SMAW weld. In the picture below, #6 is best represented by which answer below?
Socket weld fittings are generally used to join piping that is 50mm(2") or less?
CSA approved head, eye, and foot protection is required for all workers. This is best legislated by which of the following acts?
There is a mutual attraction that causes unlike molecules them to cling to each another. This property is best describes by which of the following terms?
Convert 0.41278 to a fraction. Choose the best answer from below.
With ______ piping, fusion welding, and acid resistant clamps are the the most basic types of joining. Choose from the following to fill in the blank.
If the welding apprentices tacked 4 welds in an hour, how many welds would be tacked by 3 apprentices in a 37.5 hour work week? Choose the best answer from the ones provided below.
When installing an instrument air piping system in a textile plant, what code would you reference for the minimum standards?
A threaded fitting you are trying to reclaim has been cross threaded. Which of the items below would be best to attempt to salvage the fitting?
(wf)Of the defects listed below, which one best describes the one that the black arrow is pointing to in the picture shown?
There is a mutual attraction that causes like molecules them to cling to each another. This property is best describes by which of the following terms?
Which answer below best represents the type of cutting machine in the picture provided?
There are many different parts to an oxy fuel cutting torch. Choose the best answer from the options below that would describe "A".

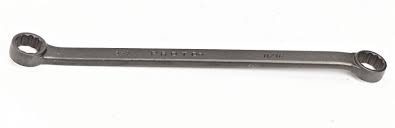

What type of wrench is pictured below?
(wf)A weld defect called "precipitate hardening" is a situation that can lead to which of the below problems? Choose the best answer from those provided
(ofc)The type of oxy-fuel cutting torch that has a cutting tip which is supplied with mixed pre-heat gases are typically called which of the names below? Choose the best answer from the ones provided below.
"Machined from a single piece of metal that is cut to match the pipe size, fit between two pipe flanges and requires an additional gasket when it is installed. Also, the bolts will need to be lengthened depending on what piping class and size of the fitting is used." This is the best description of which fitting?
Fabricators and designers have been using the various lines to convey information in their drawings, which is called the "alphabet of lines". Which of the terms below best describes the line labeled "C" in the picture provided?
Convert 45 Dekameters to Decimeters. Choose the best answer from those provided below.
Before working on a task, you notice that a trench with vertical rebar ends is directly under the work location. Harnesses and anchor points are provided at the task location by the employer, which you are instructed to use. The piece of legislation that best covers the action of the employer is which of the below?
These materials can be cooled and heated several times without any change in their chemistry or mechanical properties. This allows them to be formed and re-formed into different shapes" This is the best description of which of the terms below?
There are several different types of groove welds. Which of those weld types is represented by the picture below? Choose the best answer from those provided.
At the end of the work week, your crew installed 45% of 50 mm, Sch 40 pipe The amount required for the job is 4791 m. Which of the answers below best relates to how much pipe is left to be installed?
There are many parts to a circle. Which of the answers below best relates to "G" in the picture provided?
(ofe)On oxygen cylinders, there are no seams, neither running up and down nor across. This is due to the manufacturing process that it goes though. Which of the answers below best describes this process?
What is one of the three main differences between DWV and pressure application fittings?
(ofe)The safe working pressure of acetylene is 15 psi. As the temperature of the gas increases, this pressure will change. Choose the best answer from the ones provided below to explain what this change will be.
In the WHMIS system, this symbol represents which hazard class? Choose from the following answers.
"This term is used for lines that intersect at a right angle." Of the terms provided choose the best one to fit this statement
There are several different types of groove welds. Which of those weld types is represented by the picture below? Choose the best answer from those provided.
(papg) Determining the surface area of any box involves several calculations. Which of the answers below best describes the number of sides that are involved in determining the surface area of a box open to atmosphere?
There are some specific weld faults that can occur with a fillet weld. Which of these faults is represented by the picture below? Choose the best answer from those provided.
(v) There are many variations of the basic types of valves. Which of the basic valve types below would have "Pilot valve" variation?
"This type of breathing apparatus is designed to allow a reserve of air for 5-10 minutes." The answer below that this statement best describes is which one?
Using the picture below, which of the following answer best describes the dimension "E"?
Convert ⁷⁄₁₅ to a decimal. Choose the best answer from the ones below
Which of the following disc designs is the most widely use variation for the gate valve?
For horizontal soldered joints, it is a good practice to apply the solder at which location?
Fill the blanks with the answers provided. "These two valves, _______ and ________ are usually used together in a line. The flow of fluid through the line finds little friction from either one."
Of the welded joint configurations, which of the terms below references the picture provided?
"A substance used to promote fusion that is applied to surfaces to be joined to keep them free from oxide and promote their union." This is the best definition of which of the soldering terms below?
Calculate the relative density of a compound at 10456 kg/m³ with water at 1000 kg/m³. Select the best answer from the ones provided below.
(es) Using the proper tool for the job is an integral part of working safely. When using the shank and the width of the tip to size the proper screwdriver, which of the screwdrivers below would you be sizing?
When comparing STD, XS and XXS wall thicknesses on typical piping, STD piping has:

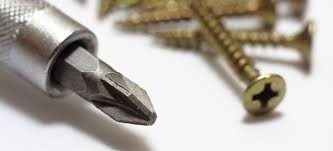

What type of screwdriver head is pictured below?
(wf)Slow travel speed, weak amperage and improper electrode angle are all included in which of the following terms? Choose the best answer from those provided below.
The markings required on a butt weld fitting does not include which of the following?
Which is the best answer below that describes the following picture?
(ws) Welding and Oxy-fuel cutting have some specialized safety equipment. Which of the answers below would be the minimum recommended filter plate for low amperage PAC welding?
"Provides requirements for design, fabrication, installation and inspection of steam heating, hot water heating, hot water supply boilers, and potable water heaters intended for low pressure service that are directly fired by oil, gas, electricity, coal or other solid or liquid fuels." This is the best description of which of the ASME sections below?
The 3 key elements of the WHIMIS system are, worker education, material safety data sheets and ________. Choose from the answers below to fill in the blank.
(papg) When calculating the "Grade" of a slope, there are several terms that are used. Which of the terms below is best defined as the difference in distance between two ends of a sloped pipe?
In relation to soldering, what does the term "Bore" signify?
(bs)"In this type of welding, the filler metal is liquid above 425°C, and deposited in the joint by other than capillary attraction." This statement best describes which of the weld methods below?
Position designations for groove and fillet test welds include numbers and letters. The number dictates a particular position, while the letter dictates a particular position. Choose the best combination of letters and numbers below to identify the weld position and type shown in the picture below.
The pressure exerted by a column of Hg 9" high would be which of the following answers? Choose the best answer that applies from the ones below
T=K x D x P, This formula is used to find the starting tightening torque target number. What does the "T" represent in this formula?
